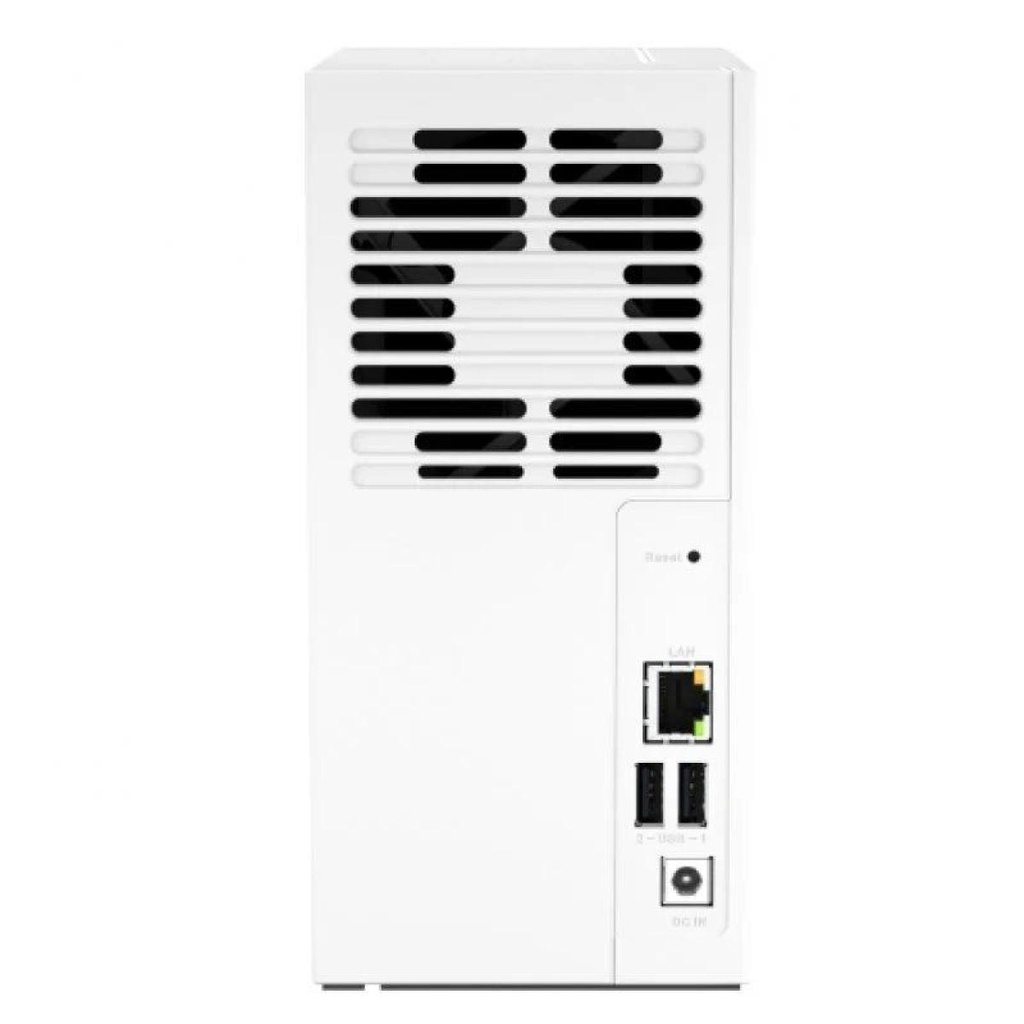

NAS QNAP TS-233/ 2 Bays 3.5"- 2.5"/ 2GB DDR4/ Tower Format

TS-233

Create a personal private cloud and home media center with an embedded NPU to power AI-powered facial recognition

Manage your own personal cloud storage and enjoy easy file access, sharing and syncing with the TS-233. Designed to enhance collaboration and increase remote work productivity, the TS-233 also includes rich multimedia applications and offers a complete home entertainment portal.

Centralized media management

Centrally store photos, music and videos; easily browse, organize and share media files.

AI-based image recognition

With an embedded NPU (Neural Network Processing Unit) processor, the TS-233 enhances performance for high-speed object and facial recognition.

home entertainment center

Supports ARM NEON technology, which speeds up video processing for a better entertainment experience.

secure remote access

myQNAPcloud allows you to easily access, manage and share the files on the NAS over the Internet.

Snapshot protection against ransomware

Protect your files and data from accidental deletion and malware attacks using shadow copy protection.

Comprehensive security management

It serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, etc.

• TS-233
• CPU: ARM 4-core Cortex-A55 2.0GHz processor
• CPU architecture: 64-bit ARM
• Floating point unit:
• Encryption engine:
• System memory: 2 GB, not expandable
• Note: Reserves some RAM for use as shared graphics memory.
• Maximum memory: 2 GB, not expandable
• Flash memory: 4 GB (dual-boot OS protection)
• Drive Bay: 2 x 3.5' SATA 6Gb/s drives, 3Gb/s
• Drive Compatibility: 3.5' SATA Hard Drives
• 2.5' SATA Hard Drives
• 2.5' SATA Solid State Drives
• Hot swappable:
• GbE port (RJ45): 1
• Wake-on-LAN (WOL):
• Jumbo Frame:
• USB 2.0 port: 2
• USB 3.2 Gen 1 port: 1
• Format: Tower
• LED Indicators: System Status, LAN, USB, HDD 1~2
• Buttons: Power, Reset, USB copy
• Dimensions (Height x Width x Depth): 188.64 × 90.18 × 156.26 mm
• Weight (net): 1.11 kg
• Weight (gross): 1.95 kg
• Operating temperature: 0 - 40 °C (32°F - 104°F)
• Storage temperature: -20 - 70°C (-4°F - 158°F)
• Relative Humidity: 5 ~ 95% RH non-condensing, Wet Bulb: 27˚C (80.6˚F)
• Power Supply Unit: 65W Adapter, AC 100-240V
• Power Consumption: HDD Sleep Mode:: 3.43 W
• Power Consumption: Operating Mode, Typical: 10.81 W
• Tested with fully loaded units.
• Fan: 1 x 80mm, 12V DC
• System Warning: Chime
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 200
